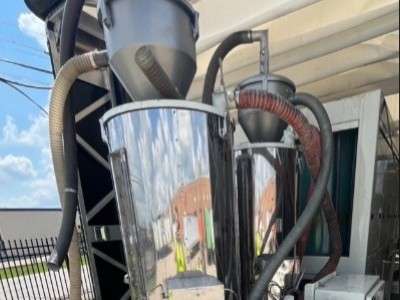

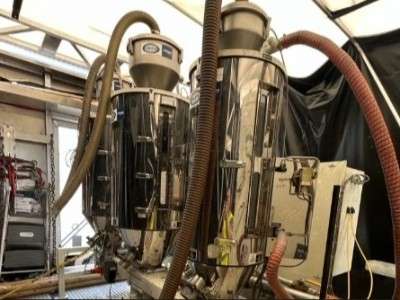

1500 Lb/Hr Una-Dyn Model PCT-1500 10 Hopper Dehumidifying Dryer System
Additional information
| Dryer System | – |
|---|---|
| System Year of Mfg. | 2011 |
| System Voltage | 460V / 3Ph / 60Hz |
| System Brand | Una-Dyn |
| Model | PCT-1500 |
| Dryer | – |
| Dryer Model | PCT-1500 Solid Bed Dehumidifier Unit |
| Drying Method | Twin Tower Desiccant |
| Air Flow | 1500 CFM Free Flow |
| Controller | FC-X Microprocessor |
| Dryer Voltage | 460V / 3Ph / 60Hz |
| Main Drying Hopper | – |
| Main Drying Hopper Style | 2500 Lbs. USC Style |
| Main Drying Hopper Quantity | 1 |
| Main Drying Hopper Capacity | 72 Cu. Ft. at 2520 Lbs. |
| Main Drying Hopper Insulated | Yes |
| 800 Lb. Drying Hopper | – |
| 800 Lb. Drying Hopper Style | 800 Lb. 23.5 CF TSC Style |
| 800 Lb. Drying Hopper Quantity | 1 |
| 800 Lb. Drying Hopper Capacity | 823 Lbs. @ 35 PCF |
| 800 Lb. Drying Hopper Insulated | Yes |
| 200 Lb. Drying Hopper | – |
| 200 Lb. Drying Hopper Style | 200 Lb. 6.8 CF TSC Style |
| 200 Lb. Drying Hopper Quantity | 2 |
| 200 Lb. Drying Hopper Capacity | 238 Lbs. @ 35 PCF |
| 200 Lb. Drying Hopper Insulated | Yes |
| 300 Lb. Drying Hopper | – |
| 300 Lb. Drying Hopper Style | 300 Lbs. @ 8.6 CF TSC Style |
| 300 Lb. Drying Hopper Quantity | 2 |
| 300 Lb. Drying Hopper Capacity | 301 Lbs. @ 35 PCF |
| 300 Lb. Drying Hopper Insulated | Yes |
| 100 Lb. Drying Hopper | – |
| 100 Lb. Drying Hopper Style | 100 Lbs. 3.4 CF TSC Style |
| 100 Lb. Drying Hopper Quantity | 4 |
| 100 Lb. Drying Hopper Capacity | 3.4 Cu. Ft. at 119 Lbs. |
| 100 Lb. Drying Hopper Insulated | Yes |

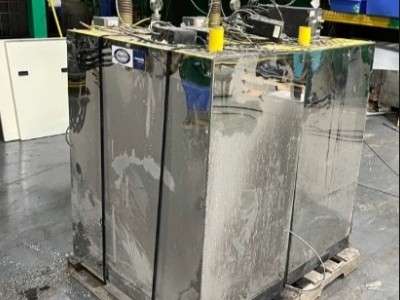

| Vacuum Take Off | – |
| Vacuum Take Off Quantity | 10 |
| Pump Conveying System | – |
| Pump Conveying System HP | 5 HP |
| Suited for | 10 Drying Hoppers |
| Vacuum Chambers | 10 |
| Dust Collection Type | Dust Master Clean Floor Filter |
| Pump Vacuum Conveying System | – |
| Pump Vacuum Conveying System HP | 5 HP |
| Application | 10-11 Machines |
| Vacuum Receivers | 12 |
| Shut Off Valves | 21 |
Request A Quote
PlastiWin Capital Equipment, LLC. has just located this 1500 Lb/Hr Una-Dyn Model PCT-1500 10 Hopper Dehumidifying Dryer System for sale. It comes complete and ready for a new home. It is priced to sell so call us today at (330) 998-6738 to set up your inspection or for any other Plastic Ancillary Equipment needs!
