Used 27mm Leistritz Model ZSE 27 MAXX Twin Screw Extruder
Additional information
| Extruder | – |
|---|---|
| Brand | Leistritz |
| Model | ZSE 27 MAXX |
| Screw Diameter | 27mm |
| Year of Mfg. | 2021 |
| Voltage | 460V / 3Ph / 60Hz |
| L/D | 36:1 |
| Vented | Yes |
| Vent Open | Yes |
| Cooling | Water Cooled |
| Screw Set Up | Parallel |
| Screw Rotation | Co-Rotating |
| Screw RPM | 1,200 RPM Max. |

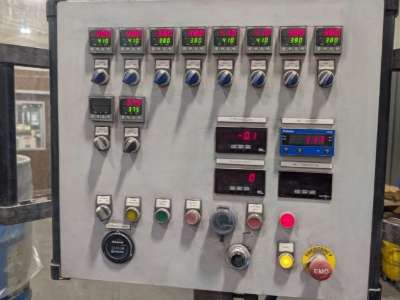

| No. of Barrel Temp. Zones | (8) Barrel Temp. Zones |
| No. of Die Zones | (1) Die Zone |
| Motor HP | 40 HP AC Motor |
| Drive | AC Drive |
| Centerline Height | 41.25" |
| No. of Feeding Ports | (1) Feeding Port |
| Feeders/Side Feeders | No |
| Vacuum Pumps | No |
| Feed Throat Opening | 2' x 3' (Approx.) |
| Stand | Included |
| Screen Changer | No |

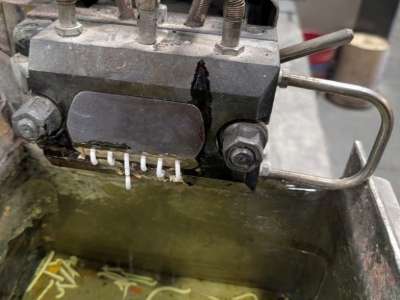

| Plastic Parts Made | Strands |
| Under Power | Yes |
| Hours | 3,054 |
| Heat Exchanger | – |
| Heat Exchanger Dimensions | 13" W x 28" D x 50" H |
| Heat Exchanger Reservoir | 5 Gallon Capacity, Vented & Insulated |
| Heat Exchanger Pump Motor | 1 HP ODP Pump Motor |
| Heat Exchanger Voltage | 460V / 3Ph / 60Hz |

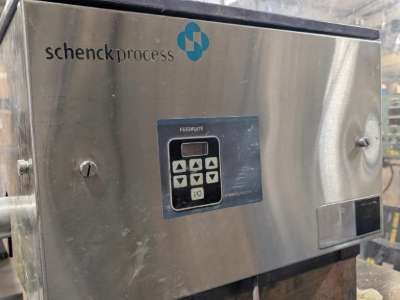

| Volumetric Feeder | – |
| Feeder Brand | Schenck-AccuRate |
| Feeder Model | Model 610 |
| Feeder Voltage | 230V / 1Ph / 50/60Hz Supply to 90V DC Motor |
| Hopper Extension | 2.5 Cubic Feet Hopper Extension |
| Helix Diameter | 1.75" Diameter Helix |
| Nozzle Diameter | 2.25" Diameter Nozzle |
| Discharge Point | 7" from Face of Feeder |
Request A Quote
PlastiWin Capital Equipment, LLC. has just located this Used 27mm Leistritz Model ZSE 27 MAXX Twin Screw Extruder for sale. It comes complete and ready for a new home. It is priced to sell so call us today at (330) 998-6738 to set up your inspection or for any other Extrusion needs!
